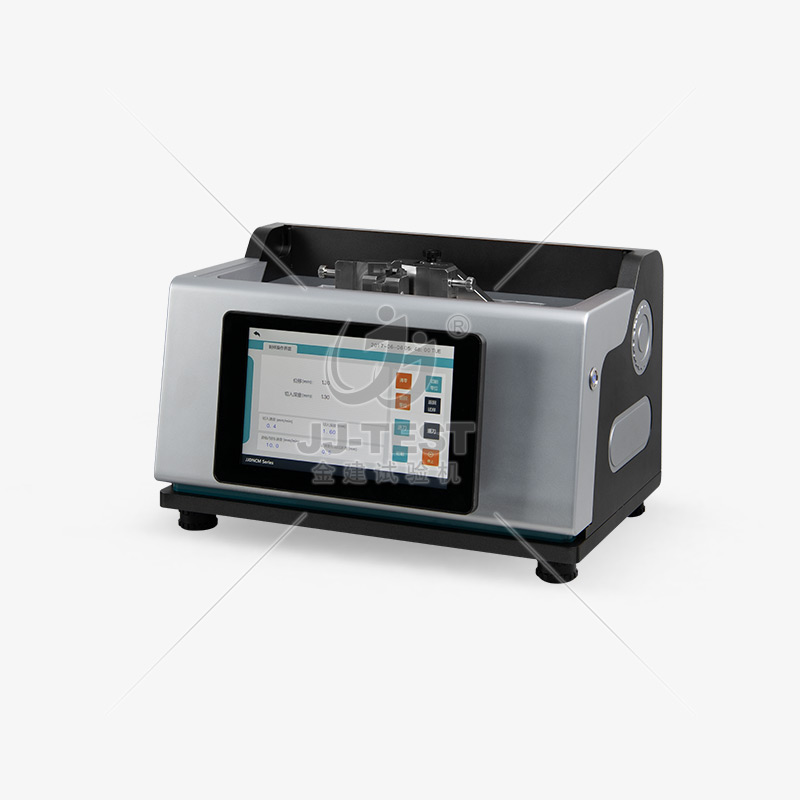

GALAXY Double Notch Coplanar Maker
GALAXY DNCM
Double Notch Coplanar Maker
Used for preparing the double notches of standard specimens for Charpyimpact testing of high-density polyethylene (PE-UHMW),and can also beused for preparing notches of FNCT and PENT specimens

Standard

GB/T 21461.2,ISO 16770,ASTM F 1473
Description
Features
Standards
Specifications
Accessories
Galaxy Double Notch Coplanar Maker

Used for preparing the double notches of standard specimens for Charpyimpact testing of high-density polyethylene (PE-UHMW),and can also beused for preparing notches of FNCT and PENT specimens。


1.High-efficiency and precise preparation
One pass can prepare double notches on both sides of the specimen, making the notchesco-planar and precise. This replaces the traditional flipping process, doubling the effciencyand precision of specimen preparation;
2.Unique Structure
The original design ensures the notches are precise and symmetrical with the specimen's centerline,using dual blades that operate together. The balanced force during cutting keeps the notchesflat and consistent with the remaining thickness;
3.Easy-to-use Software
Using a touch screen interface, the operation is simple and clear;
4.Reliable Safety Protection
The body is made of a high-performance aluminum alloy and coated with a quality layer for excellent weatherresistance. It also has multiple safety protection devices,from physical to electrical,ensuring personnel safetyand stable equipment operation.。

Standard
GB/T 21461.2
IS0 16770
ASTM F 1473

Galaxy Double Notch Coplanar Maker

Technical Parameter

Technical Parameter




Blade thickness
0.23mm±0.03mm
Blade cutting angle
14°±2°
Specimen thickness range
4mm~15mm
Remaining width dimension accuracy
±0.02mm Or it is the same as the standard gauge block used
Maximum cutting depth
4.5mm
Cutting resolution
0.01mm
Cutting speed range
0.2mm/min~10mm/min
