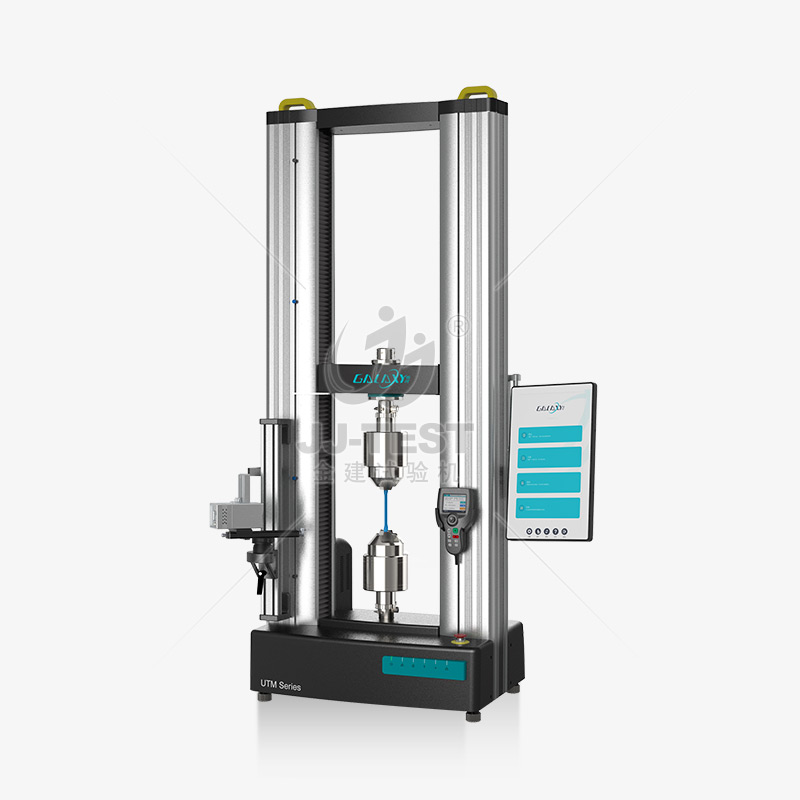

GALAXY Electronic Universal Testing Machine
GALAXY UTM
Video Extensometer
High-precision digital image processing tracks marker displacement in real time for non-contact strain measurement. Solvesdeformation measurement in extreme temperatures and removes mechanical clamping stress. ldeal for brittle materials,thin films,and contact-sensitive specimens.

Standard

GB/T 9341,GB/T 16491,ISO 178,ASTM D 638,GB/T 13022,IS0 527,GB/T 1040,GB/T 1041
Description
Features
Standards
Specifications
Accessories
Video Extensometer


High-precIsion digital image Processing tracks marker displacement in real time for non-contact strain measurement. Solvesdeformation measurement in extreme temperatures and removes mechanical clamping stress. ldeal for brittle materials,thin fims.and contact-sensitive specimens.

1.Infommatization and Intelligence

Data is centralized in the cloud or on servers, facilitating efficient interaction of experimental information, avoiding therisk of data loss or corruption,and ensuring high security. Relying on network informatization, experimental data can beeasily shared and collaborated between different departments and teams.

2.Intelligent Sensing and High-Precision Measurement
Multi-channel high-speed synchronous sampling automatically identifes the type and function of sensors.Data acquisition is fast, precise, and stable.

3.Convenient Human-Computer Interaction

Multi-terminal coverage supports collaborative operation of PC, mobile phones,and control terminals,achieving synchronized display and remote control of experimental data, providing users with an efficient and comvenient operation experience.


4.Simple and Efficient Software
The TestExplorerfl software include nearly 100 built-in ISO,GB/T, ASTM,and EN standards., It supports user-defnedtest plans,editing of test processes,and flexible creation of test methods,meeting the needs of various scenarios suchas scientifc research and quality inspection. The operation is effhcient and highly expandable.

5.Non-Contact Measurement


Especially suitable for testing brittle materials,flexible materials,or underhigh/low-temperature environment,avoiding errors or specimen damagecaused by clamping force from traditional extensometer.

6.Intelligent Gauge Tracking

Utilizing real-time image analysis based on Digital Image Correlation (DIC)technology,it automatically tracks gauge length variations, dynamicallycaptures high-speed or complex defommation processes.

7.Multidimensional Data Synchronization


Dual analysis of "dynamic video recording + mechanical data"enables simultaneous measurement of transverse, longitudinal,and multi-parameters.It conducts mechanical property tests(elastic modulus,poisson's ratio,etc.), generates stress-straincurves in real time,and supports multi-channel data comparisonand analysis





Standard
GB/T 16491
GB/T 9341
GB/T 13022
ISO 527
GB/T 1040
ISO 178
GB/T 1041
ASTM D 638


Video Extensometer

Technical Parameter

Technical Parameter


Measurement range
80mm、150mm、200mm、240mm、500mm、600mm
Deformation indication error
1.5µm或示值的±0.5%以内
Deformation resolution
0.2µm或0.5µm
