position： Home > JJ Products > Engineering plastics and products testing machines > Apparent Density Tester
Apparent Density Tester
表观密度测定仪
JJADT-14 Apparent Density Tester

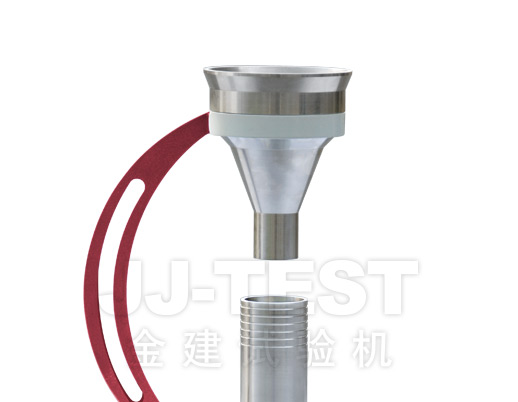

This instrument specifies a method for the determination of the apparent density of loose materials (powders or granules) that can flow from a specified funnel. It is an ideal test instrument for the chemical industry and quality inspection departments. The instrument consists of a base, a support frame, a funnel, an inserting plate, and a material receiver.

Standard

ASTM 1895
Description
Features
Standards
Specifications
Accessories

JJADT-14 apparent density tester



This instrument specifies a method for the determination of the apparent density of loose materials (powders or pellets) that can flow from a specified funnel. It is an ideal test instrument for the chemical industry and quality inspection departments. The instrument consists of a base, a support frame, a funnel, an inserting plate, and a material receiver.



Standard


ASTM1895 A


JJADT-14 apparent density tester


Technical Parameter

Technical Parameter


Component
Base, support frame, funnel, insert plate, receiver

Funnel, plate and receiver

Made of 304 stainless steel
Receiver volume
100±0.5cm³ 40mm inner diameter

Funnel



The inner diameter of the feed port of the funnel A is Φ56mm, the inner diameter of the discharge port is Φ33mm, and the length is 115mm;The inner diameter of the feed port of the funnel B is Φ91mm, the inner diameter of the discharge port is Φ10mm, and the length is 114mm
