Apparent Density Tester
表观密度测定仪

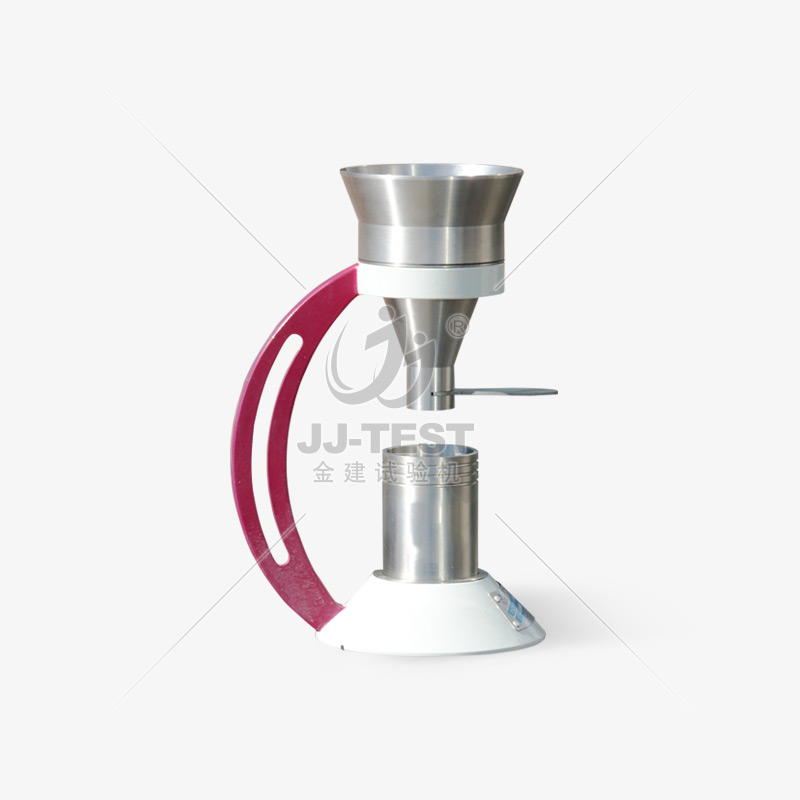

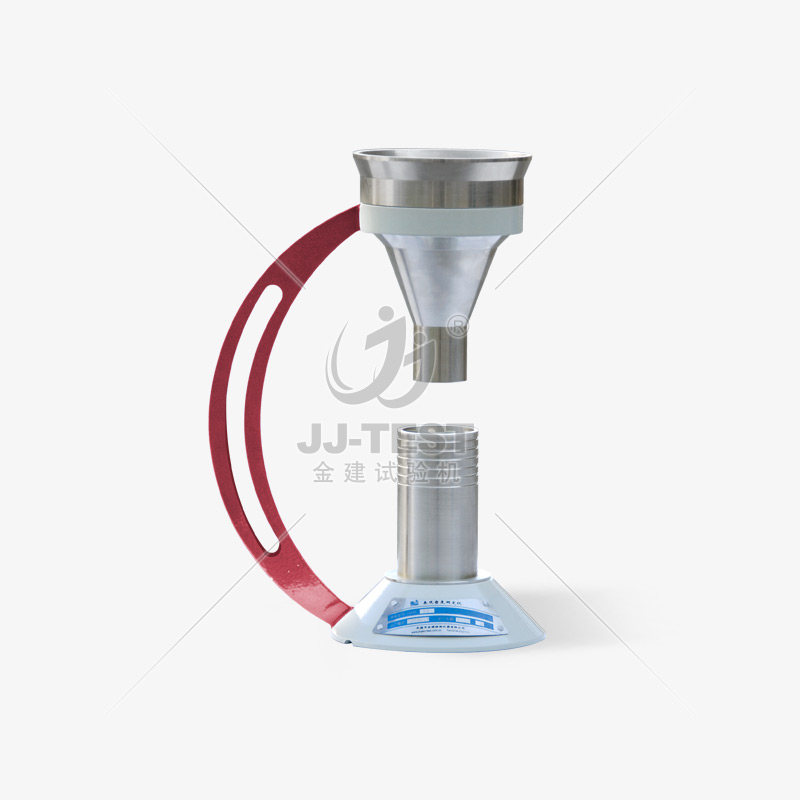

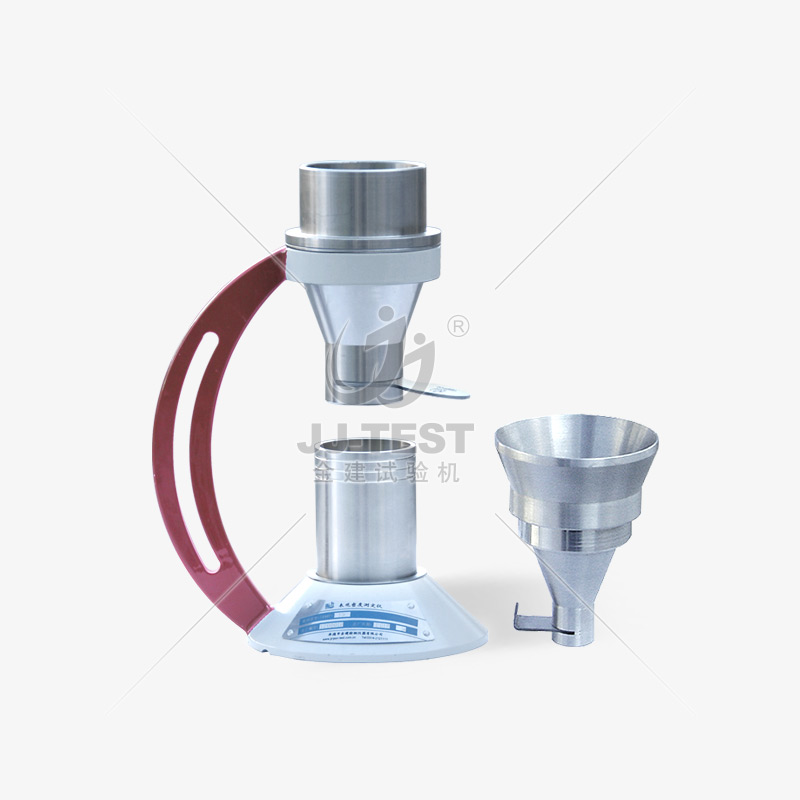

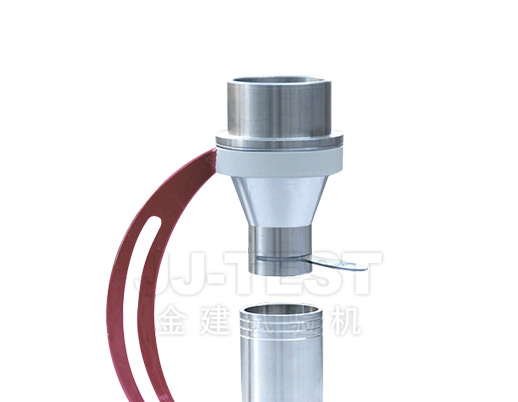

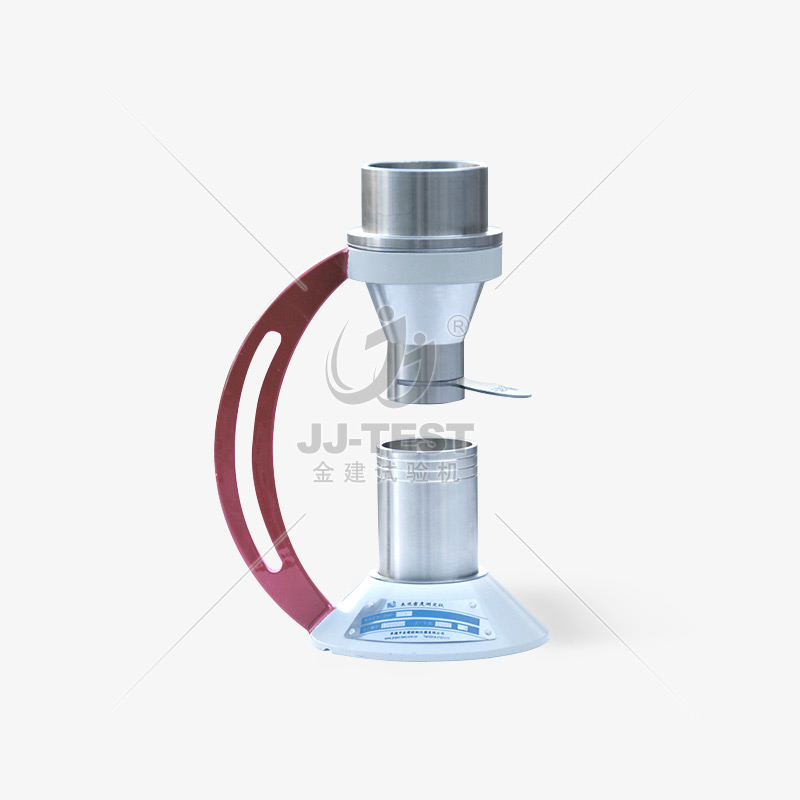

JJADT-11 Apparent Density Tester
This instrument specifies a method for the determination of the apparent density of loose materials (powders or pellets) that can flow from a specified funnel. It is an ideal test instrument for the chemical industry and quality inspection departments. The instrument consists of a base, a support frame, a funnel, an inserting plate, and a material receiver.

Standard

GB/T 20022,GB/T 1636
Description
Features
Standards
Specifications
Accessories

JJADT-11 Apparent Density Tester



This instrument specifies a method for the determination of the apparent density of loose materials (powders or pellets) that can flow from a specified funnel. It is an ideal test instrument for the chemical industry and quality inspection departments. The instrument consists of a base, a support frame, a funnel, an inserting plate, and a material receiver.



Standard


Standard name


GB/T20022
                                                         GB/T1636（A）



JJADT-11 Apparent Density Tester

Technical Parameter

Technical Parameter


Component
Base, support frame, funnel, insert plate, receiver

Funnel, plate and receiver

Made of 304 stainless steel
Receiver volume
100±0.5cm³ 40mm inner diameter
Funnel
The inner diameter of the inlet is Φ56mm, the inner diameter of the outlet is Φ33mm, and the length is 115mm
