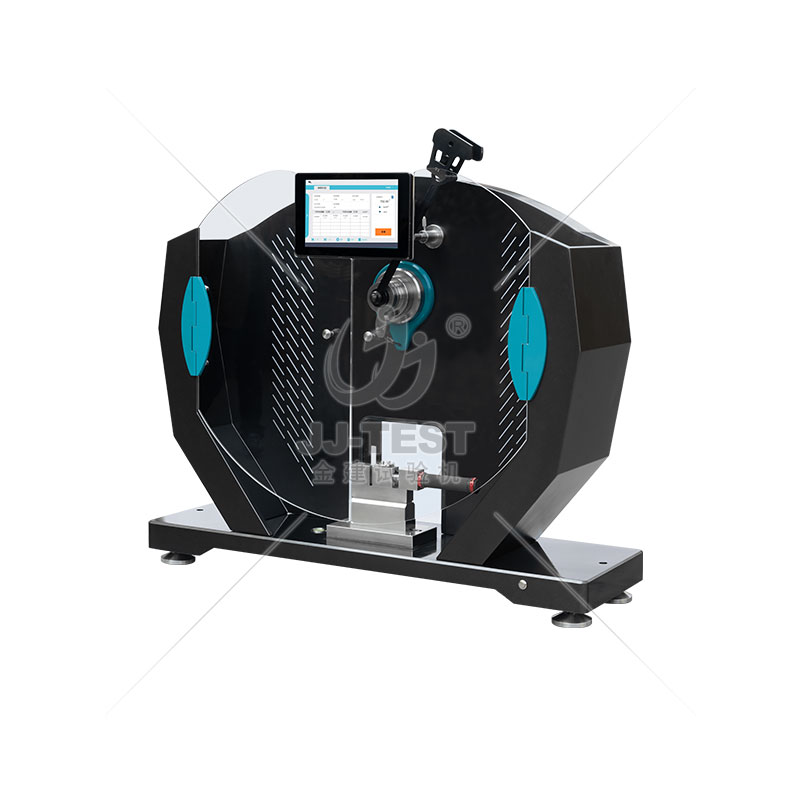

GALAXY Multi Impact Tester
GALAXY HIT
lzod Impact Tester
Used for determining the impact toughness of non-metallic materials (including plates,pipes, and plastic profles),reinforced nylon,fberglass reinforced plastics,ceramics,cast stones,electrical insulating materials,etc. This series of products has multiplespecifcations and models,meeting the testing requirements for Charpy/lzod impact,tensile impact,Charpy impact of plastic pipes, and double notch impact of ultra-highmolecular weight materials.

Standard

GB/T 21189,GB/T 1843,ISO 180
Description
Features
Standards
Specifications
Accessories

GALAXY


lzod Impact Tester



Used for determining the impact toughness of non-metallic materials (including plates,pipes, and plastic profles),reinforced nylon,fberglass reinforced plastics,ceramics,cast stones,electrical insulating materials,etc. This series of products has multiplespecifcations and models,meeting the testing requirements for Charpy/lzod impact,tensile impact,Charpy impact of plastic pipes, and double notch impact of ultra-highmolecular weight materials.



1.Patented Structure Pendulum

One-time CNC machined impact pendulum with the performance of 90od rigidity and no vibration: Lock nut fxing
structure was introduced for easier installation；


It is equipped with weighing and measurement points for calibration works；


2.Specimen installation and centering device


With a specimen centering device,it can quickly position and install specimens,improve testing effciency,and ensure accurate results；


3.High Efficiency and Security


Equipped with multiple security protection devices such as protective door；


access control switches and braking system；


4.High-precision and Multi-functions


JJ-TEST independently developed highly integrated Data Acquisition Processor (JJ-DPU1)to guarantee the stability of tester；


Display the impact angle in real time and automatically calculate impact energy/strength;With auxilliaryfunctions of correcting friction energy loss and measuring the period of oscillation of pendulum；


Automatically captures specimen dimensions and batch-processes specimen data and test results with Smart Dimension Measuring Device JJSM-113；


Dual control of PC and touch screen realizes RDS；


Confgure the testDMS data management system to export experimental data for convenient post processing and analysis.



Standard
GB/T 21189
GB/T 1843
ISO 180



Technical Parameter

Technical Parameter

Model
HIT-G2221
HIT-G2231
Impact energy (J)
1.0、2.75、5.5
11.0、22.0
Impact speed
3.5m/s
3.5m/s
Pendulum pre-lift angle
150°
150°
Impact pendulum torque (Nm)
M1.0=0.53590 M2.75=1.47372
M5.5= 2.94744
M11=5.5949
M22=11.7898
Strike center distance
335mm
335mm
Display resolution
0.001J
0.001J
Impact blade round comer radius
R=(0.8±0.2)mm
R=(0.8±0.2)mm
Energy loss
1.0J:2%;2.75J:1%;5.5J:0.5%
0.50%
Dimensions
(1200x330x1100)mm
(1200x330x1100)mm
Working space
(2700x800x2700)mm
(2700x800x2700)mm
Weight
200kg
200kg
