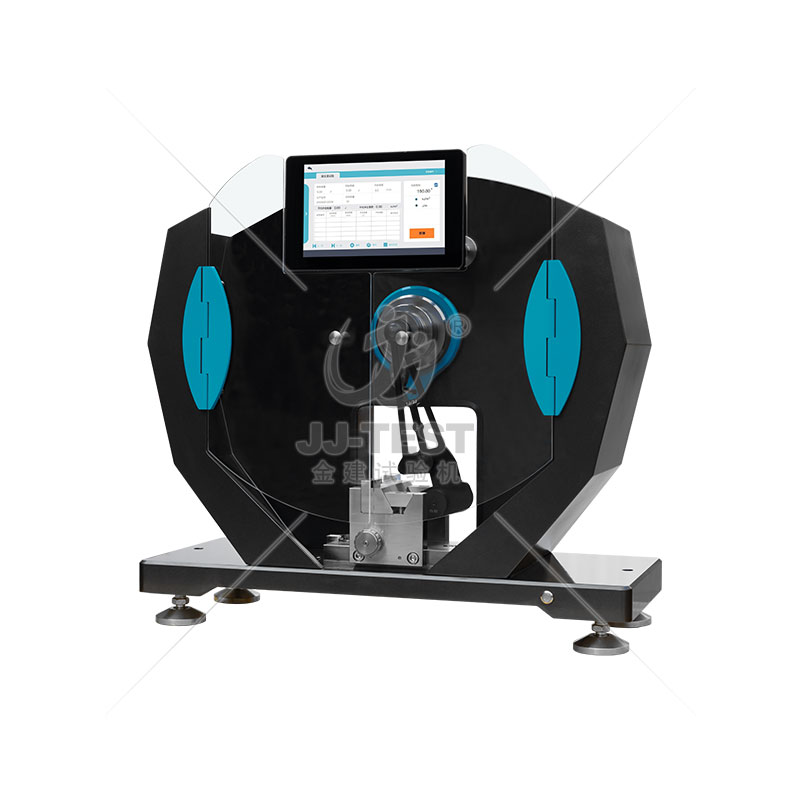

GALAXY Multi Impact Tester
GALAXY HIT
Charpy Impact Tester
Used for determining the impact toughness of non-metallic materials (including plates,pipes, and plastic profles),reinforced nylon,fberglass reinforced plastics,ceramics,cast stones,electrical insulating materials,etc. This series of products has multiplespecifcations and models,meeting the testing requirements for Charpy/lzod impact,tensile impact,Charpy impact of plastic pipes, and double notch impact of ultra-highmolecular weight materials.

Standard

GB/T 21189,GB/T 1043,ISO 179-1
Description
Features
Standards
Specifications
Accessories

GALAXY


Charpy Impact Tester



Used for determining the impact toughness of non-metallic materials (including plates,pipes, and plastic profles),reinforced nylon,fberglass reinforced plastics,ceramics,cast stones,electrical insulating materials,etc. This series of products has multiplespecifcations and models,meeting the testing requirements for Charpy/lzod impact,tensile impact,Charpy impact of plastic pipes, and double notch impact of ultra-highmolecular weight materials.



1.Patented Structure Pendulum

One-time CNC machined impact pendulum with the performance of 90od rigidity and no vibration: Lock nut fxing
structure was introduced for easier installation；


It is equipped with weighing and measurement points for calibration works；


2.Specimen installation and centering device


With a specimen centering device,it can quickly position and install specimens,improve testing effciency,and ensure accurate results；


3.High Efficiency and Security


Equipped with multiple security protection devices such as protective door；


access control switches and braking system；


4.High-precision and Multi-functions


JJ-TEST independently developed highly integrated Data Acquisition Processor (JJ-DPU1)to guarantee the stability of tester；


Display the impact angle in real time and automatically calculate impact energy/strength;With auxilliaryfunctions of correcting friction energy loss and measuring the period of oscillation of pendulum；


Automatically captures specimen dimensions and batch-processes specimen data and test results with Smart Dimension Measuring Device JJSM-113；


Dual control of PC and touch screen realizes RDS；


Confgure the testDMS data management system to export experimental data for convenient post processing and analysis.



Standard
GB/T 1043
GBT/T 21189
ISO 179-1


GALAXY Multi Impact Tester

Technical Parameter

Technical Parameter



Model
HIT-G2111
HIT-G2141
Impact energy (J)
0.5、1.0、2.0、4.0、5.0
7.5、15.0、25.0、50.0
Impact speed
2.9m/s
3.8m/s
Pendulum pre-lift angle
150°
150°
Impact pendulum torque (Nm)
M0.5=0.26795 M1.0=0.53590M2.0=1.07180 M4.0=2.14359M5.0=2.67949
M7.5=4.01924 M15.0=8.03848
M25.0=13.39746 M50.0=26.79492
Strike center distance
230mm
395mm
Display resolution
0.001J
0.001J
Impact blade round comer radius
(2.0±0.5)mm
(2.0±0.5)mm
Impact blade angle
(30±1)°
(30±1)°
Clamp jaw round corner radius
(1.0+0.1)mm
(1.0+0.1)mm
Energy loss
0.5J:4% 1.0J:2% 2.0J:1% 4.0J:0.5% 5.0J:0.5%
0.50%
Dimensions
(700x310x750)mm
(1200x330x1100)mm
Working space
(2200x800x2200)mm
(2700x800x2700)mm
Weight
150kg
200kg
