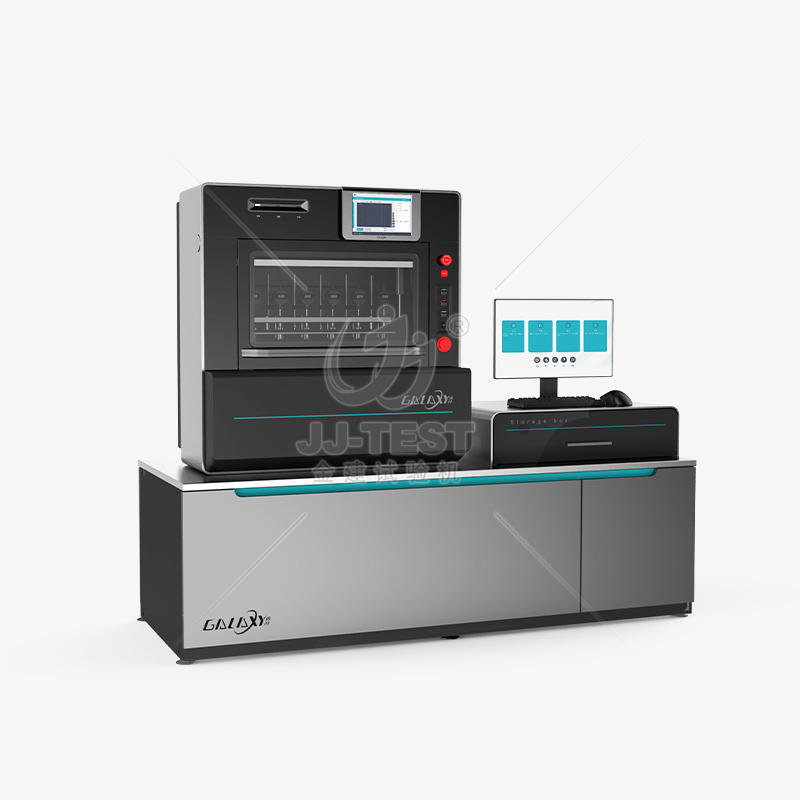

GALAXY HDT/Vicat Tester
Galaxy HDT
HDT/V-G HDT/Vicat Tester
Used for measuring the heating deformation temperature and vicatsoftening point temperature of various thermoplastic and thermosetmaterials such as plastics,hard rubber, and fber reinforcements

Standard

GB/T 1633,ISO 2507,ISO 75,ISO 306,ASTM D 1525,GB/T 8002,ASTM D 1648,JB/T 12723
Description
Features
Standards
Specifications
Accessories

GALAXY


HDT/Vicat Tester



Used for measuring the heating deformation temperature and vicatsoftening point temperature of various thermoplastic and thermosetmaterials such as plastics,hard rubber, and fber reinforcements。



1.Multiple Safety Protections

Equipped with safety protection door to isolate high-temperature andchemical injury.Over-temperature protection device and high temperaturethreshold setting function ensure that the oil temperature is controllableduring test.


2.Multifunctional and Intelligent Control


Touch screen cooperates with unique software to achieve human-computer interaction for streamlined productivity；


Dual control of PC and touch screen ensures RDS to be realized；


3.Eco-friendly Philosophy


Fume extraction system is introduced to fiter and remove the oil fumegenerated during the test.Eco- friendly thermal insulation materialsenhance heating performance；


4.Data Recording and Analysis


Curves are drawn in real time and data are automatically stored for subsequent analysis；


5.自动加卸载系统


High Test Effciency：Spare baths are intended for alternating tested oil to improve the testing effhciency；


Uniform Temperature Distribution：Unique diversion structure of the heating bath provides a uniform temperature freld, no disturbance to the specimen, no vibration and low noise；


Low Expansion Rate of Test Station：Scientifc structure, reasonable material matching, combined with advanced manufacturing technique,realize theexpansion of the test station less than 0.01mm under full scale of temperature and load.；



Standard
GB/T 1633
GB/T 1634
GB/T 8802
ISO 75
ISO 306
ISO 2507
ASTM D 1525
ASTM D 1648

JB/T 12723



Technical Parameter

Technical Parameter


Test station
6工位
Temperature control range
RT～300℃
Max.temperature measurement error
±0.5℃
Heating rate
 		A：(5±0.5)℃/6min；B：(12±1.0)℃/6min
Deformation measurement tool
 		Micro gauge
Deformation measurement range
-1.00mm～9.00mm
Expansion rate of the test station
 		＜0.005/100℃
Max.deformation error
 		0.005mm
Specimen support span
 		64mm、100mm
