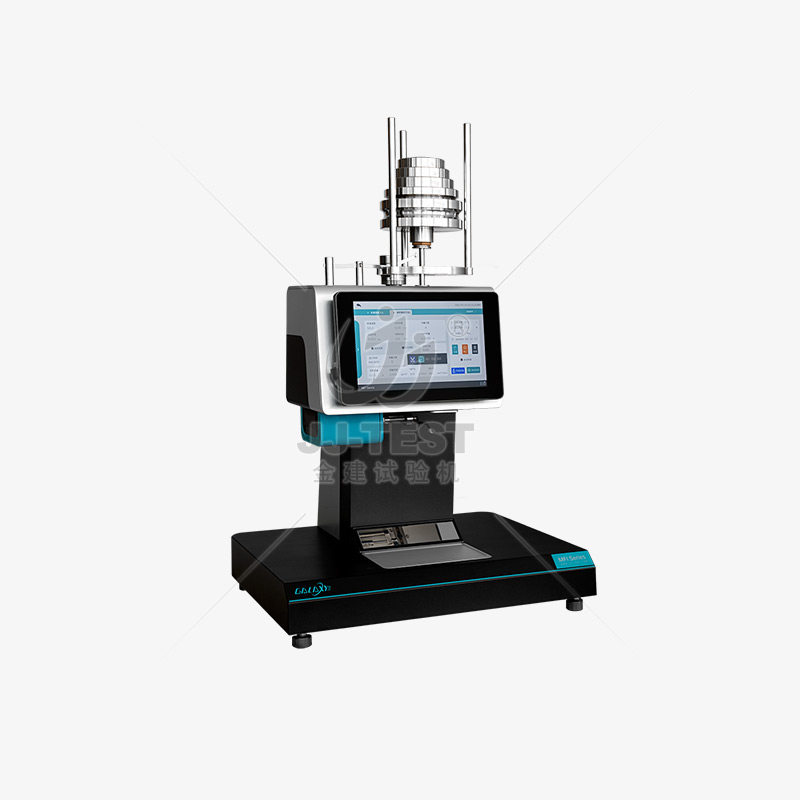

GALAXY Melt Flow Indexer
GALAXY MFI
G1112 Melt Flow Indexer
Used to measure the melt mass flow rate (MFR) or melt volume flow rate (MVR) of various plasticsand resins in the viscous flow state. This product is suitable for high-melting-temperature plasticssuch as polycarbonate, polyarylsulfone,fluoroplastics,nylon,etc.,as well as low-melting-temperatureengineering plastics such as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin,polyoxymethylene (POM),etc. It is widely used in raw material production,plastic product manufacturing,as well as in educational institutions,research institutes, and quality inspection agencies.

Standard

GB/T 3682.2,GB/T 3682.1,ASTM D 1238,ISO 1133-1,ISO 1133-2,JB/T 5456
Description
Features
Standards
Specifications
Accessories


MFI-G1112


GalaxyMelt Flow Indexer




Used to measure the melt mass flow rate (MFR) or melt volume flow rate (MVR) of various plasticsand resins in the viscous flow state. This product is suitable for high-melting-temperature plasticssuch as polycarbonate, polyarylsulfone,fluoroplastics,nylon,etc.,as well as low-melting-temperatureengineering plastics such as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin,polyoxymethylene (POM),etc. It is widely used in raw material production,plastic product manufacturing,as well as in educational institutions,research institutes, and quality inspection agencies.


1.Intelligent Temperature Control

Intelligent heat conduction and balanced distribution ensures temperature，deviation with distance within  0.1C；


Adopting digital intelligent control algorithm, with the advantage of quick response, fast & smooth heating and shorter recovery time of temperature；


Long-term continuous working is stable and reliable even at 450C；


Thermal insulation of the oven made of Eco-friendly materials,adopting integrated molding process,provides excellent insulation perfommance；




2.Powerful Functions & Controllability


The application of temperature-time curves and MVRcurves enables users to intuitively understand thetemperature fluctuation range and the dispersion oftest results；


Built-in multiple test plans,effhcient and practical；


Automatic identifcation of effective test intervalsspecifed in both ISO and ASTM standards；


Multi-MFI control and data management system,shares data across systems, and enables remotemonitoring with real-time data transfer；





Standard
GB/T 3682.1
GB/T 3682.2
ISO 1133-1
ISO 1133-2
ASTM D 1238
JB/T 5456


Technical Parameter

Technical Parameter
Test methods
MFR/MVR
Display mode
Touch screen
Measurement range
(0.1～100)g/10min (0.01～3000)cm³/10min
Timer resolution
0.0005s
Temperature control range
(50~450）℃
Temperature display resolution
0.01℃
Temperature indication error
≤±0.2℃
Temperature recovery time
≤2mim
Test load method
Manually placing weights
Preload
Manual
Multi-level variable load function
None
Piston displacement display resolution
0.002mm
Mouth gag
Manual
Compaction method
Manual
Excess material extrusion method
Manual/Weight
Barrel cleaning
Manual
Instrument size
(555*440*840)mm
Host quality
About 75kg
