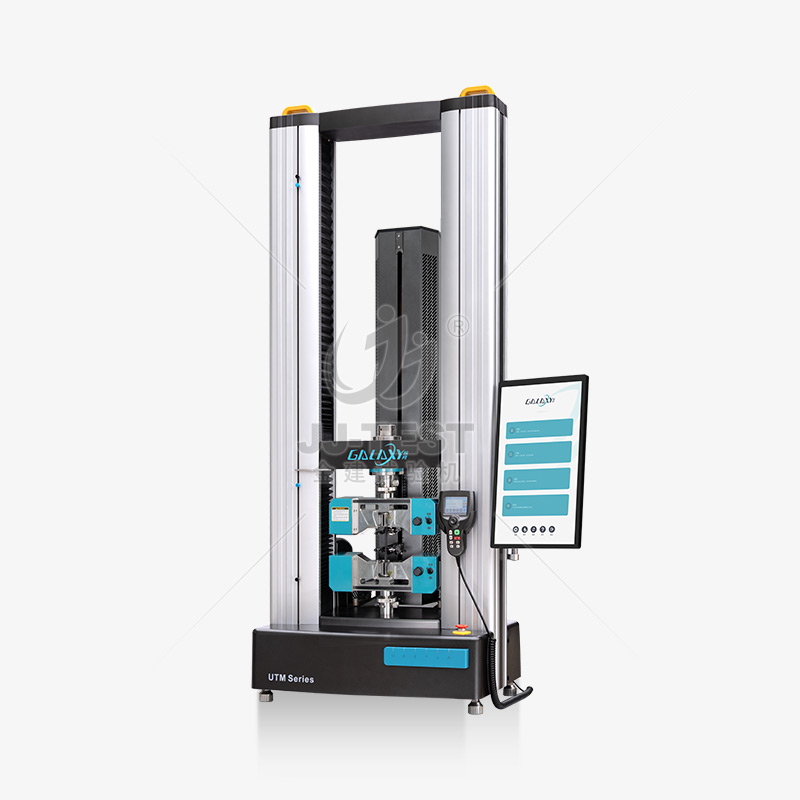

GALAXY Electronic Universal Testing Machine
GALAXY UTM
Fully Automatic Extensometer
Automatic gauge length positioning and specimen clamping enable precise tracking and measurement of deformation during testing.With one sample installation, key parameters such as elastic modulus and elongation at break can be measured, delivering accurate, stable results and high testing effhciency.

Standard

GB/T 9341,GB/T 16491,GB/T 13022,ISO 178,ASTM D 638,IS0 527,GB/T 1040,GB/T 1041
Description
Features
Standards
Specifications
Accessories

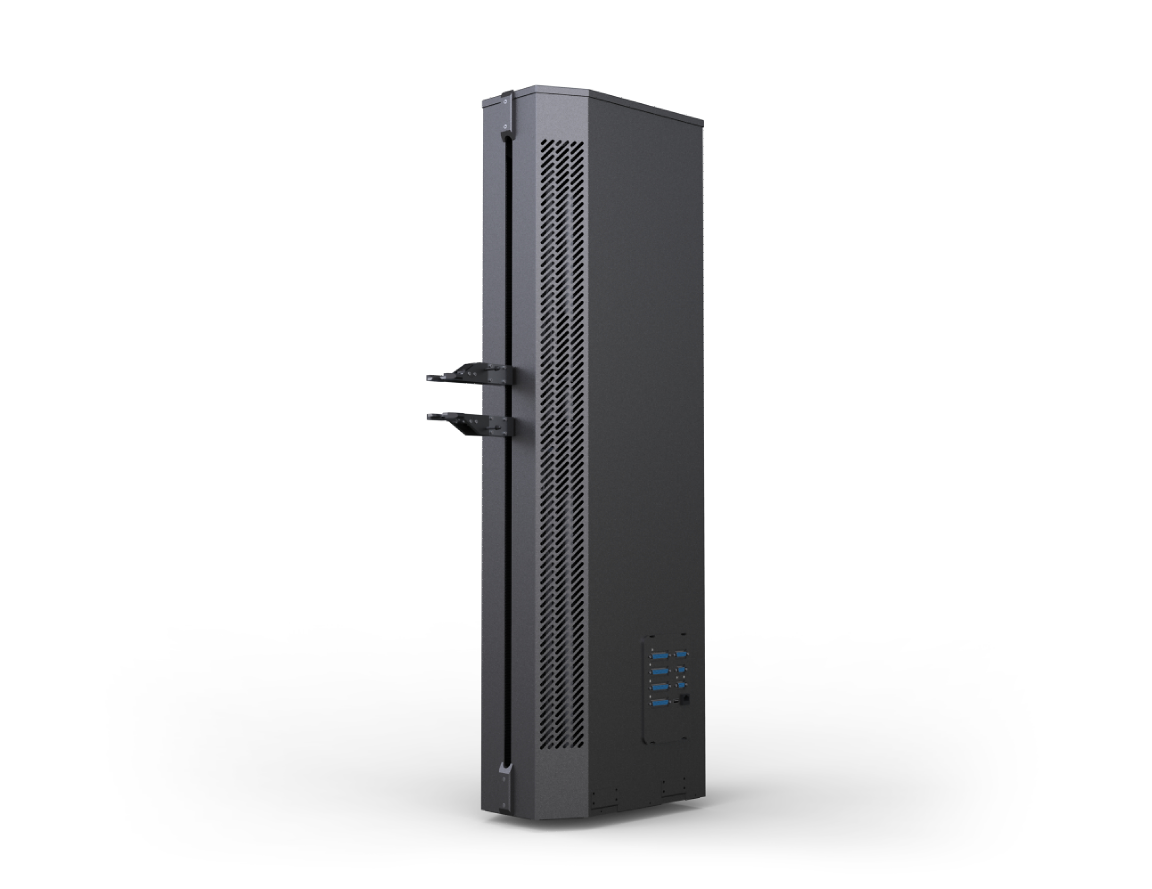

Fully Automatic Extensometer


Automatic gauge length positioning and specimen clamping enable precise tracking and measurement of deformation during testing.With one sample installation, key parameters such as elastic modulus and elongation at break can be measured, delivering accurate, stable results and high testing effhciency.

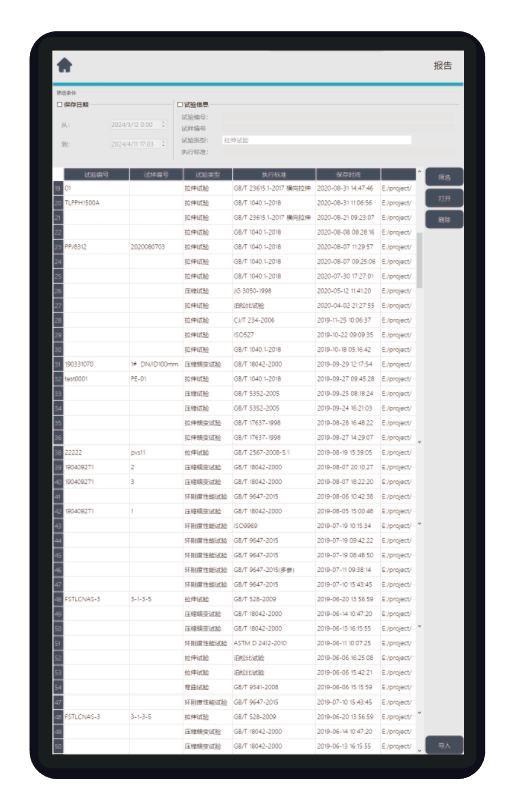

1.Infommatization and Intelligence

Data is centralized in the cloud or on servers, facilitating efficient interaction of experimental information, avoiding therisk of data loss or corruption,and ensuring high security. Relying on network informatization, experimental data can beeasily shared and collaborated between different departments and teams.

2.Intelligent Sensing and High-Precision Measurement
Multi-channel high-speed synchronous sampling automatically identifes the type and function of sensors.Data acquisition is fast, precise, and stable.

3.Convenient Human-Computer Interaction

Multi-terminal coverage supports collaborative operation of PC, mobile phones,and control terminals,achieving synchronized display and remote control of experimental data, providing users with an efficient and comvenient operation experience.

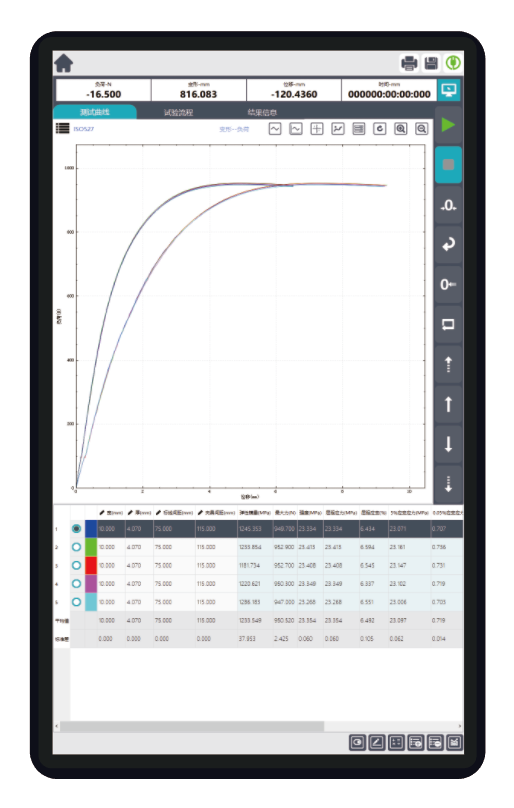

4.Simple and Efficient Software
The TestExplorerfl software include nearly 100 built-in ISO,GB/T, ASTM,and EN standards., It supports user-defnedtest plans,editing of test processes,and flexible creation of test methods,meeting the needs of various scenarios suchas scientifc research and quality inspection. The operation is effhcient and highly expandable.


5.Large Stroke High-Resolution Measurement System


Maintains high precision across the full 800mm travel range,with a measurement resolution of 0.1um.Equipped with amulti-channel optical deformation measurement system,it achieves automatic tracking and measurement of deformationsduring test


6.Servo Tracking Technology

Real-time tracking and intelligent perception of minute specimendeformations,with millisecond-level response ensuring precise,reliable output and excellent repeatability



7.Automatic gauge positioning

The system memorizes multiple gauge positions (20mm, 25mm,50mm, 75mm,etc.) and enables automatic reset and pre-defnedp0sition



Standard
GB/T 16491
GB/T 9341
GB/T 13022
ISO 527
GB/T 1040
ISO 178
GB/T 1041
ASTM D 638


Fully Automatic Extensometer

技术参数

Technical Parameter



Measurement stroke
≤800mm
Defommation indication error
1um或示值的±0.5%以内
Deformation resolution
0.1µm
Specimen clamping range
0～20mm
