GALAXY Electronic Universal Testing Machine
GALAXY UTM
The First Dual-gratings MultipleStrain Measurement System
Based on traditional extensometers, it integrates a high-precision Dual-Grating composite multiplestrain measurement system,which can not only complete elastic modulus testing but also simultaneouslymeasure yield strain, fracture strain, and other tests.

Standard

GB/T 9341,GB/T 16491,GB/T 13022,ISO 178,ASTM D 638,IS0 527,GB/T 1040,GB/T 1041
Description
Features
Standards
Specifications
Accessories

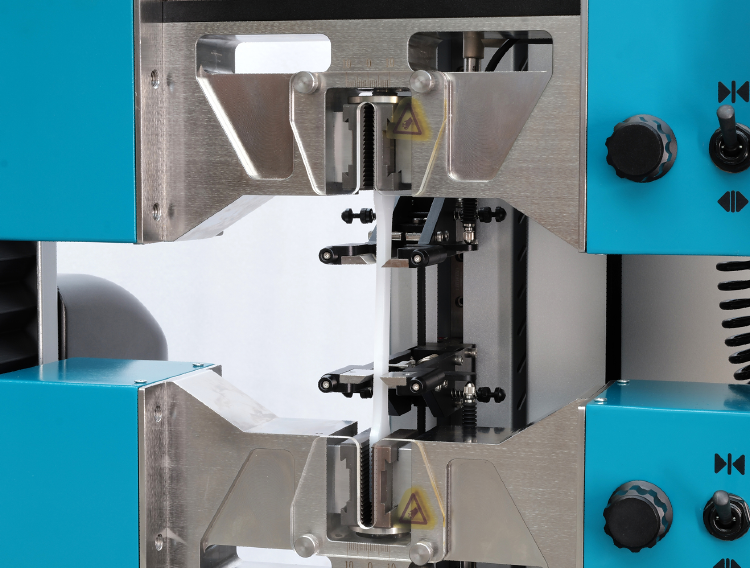

The First Dual-gratings MultipleStrain Measurement System

Based on traditional extensometers, it integrates a high-precision Dual-Grating composite multiplestrain measurement system,which can not only complete elastic modulus testing but also simultaneouslymeasure yield strain, fracture strain, and other tests.

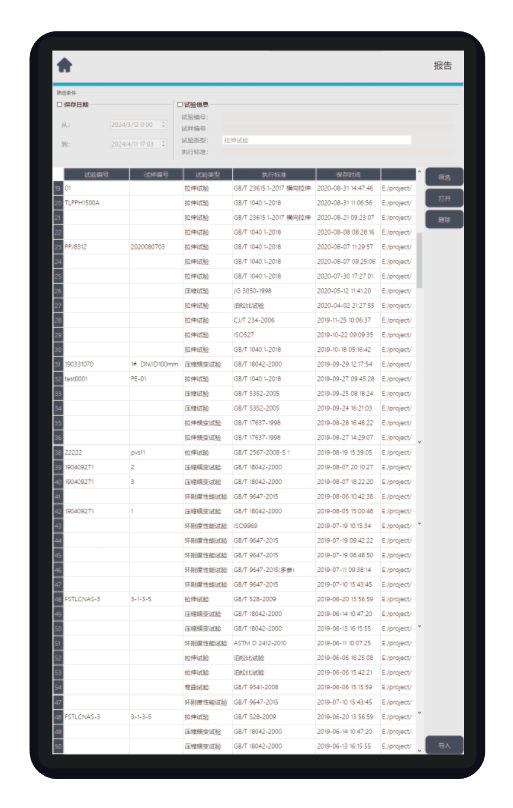

1.Infommatization and Intelligence
Data is centralized in the cloud or on servers, facilitating efficient interaction of experimental information, avoiding therisk of data loss or corruption,and ensuring high security. Relying on network informatization, experimental data can beeasily shared and collaborated between different departments and teams.

2.Intelligent Sensing and High-Precision Measurement

Multi-channel high-speed synchronous sampling automatically identifes the type and function of sensors.Data acquisition is fast, precise, and stable.

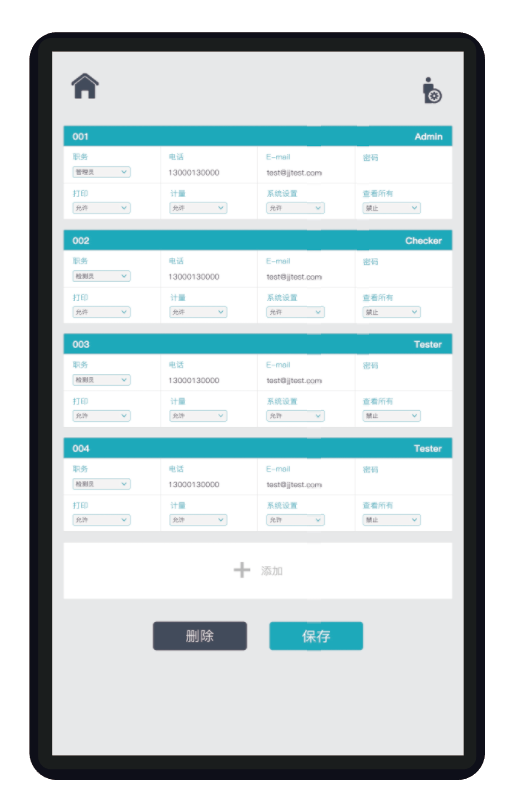

3.Convenient Human-Computer Interaction
Multi-terminal coverage supports collaborative operation of PC, mobile phones,and control terminals,achieving synchronized display and remote control of experimental data, providing users with an efficient and comvenient operation experience.

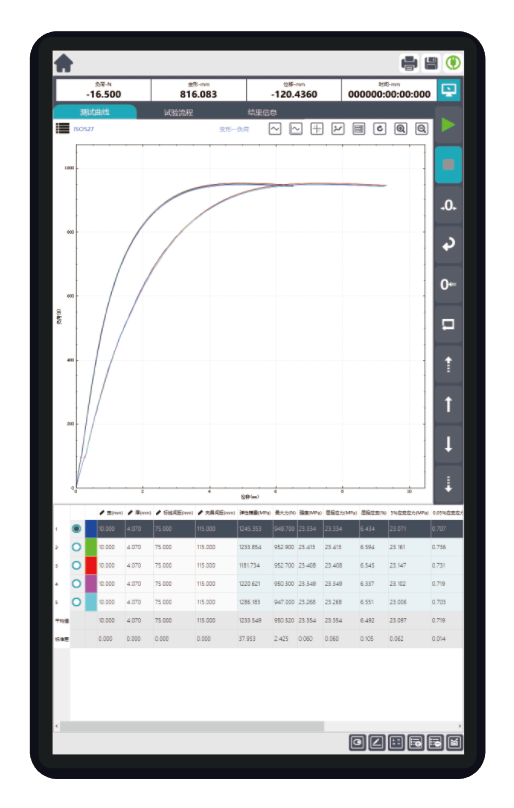

4.Simple and Efficient Software
The TestExplorerfl software include nearly 100 built-in ISO,GB/T, ASTM,and EN standards., It supports user-defnedtest plans,editing of test processes,and flexible creation of test methods,meeting the needs of various scenarios suchas scientifc research and quality inspection. The operation is effhcient and highly expandable.

5.Automatic Switchover
During the test,the elastic modulus extensometer and traditional extensometer automatically switch,enabling simultaneously measurement of elastic modulus and stress/strain data.
6.900mm
Maximum Measurable Deformation is 900mm with a resolution of 0.1um is measured deformation within 1Omm or 5um for defommation more than10mm.
7.Automatic Clamping
Automatic specimen clamping;Gauge length is automatically adjusted,it is unnecessary to place gauge marks on specimen.
8.Automatic Separation
Dual-Grating composite multiple strain measurement system shall be automatically separated from traditional extensometer after elastic modulus obtained


Standard
GB/T 16491
GB/T 9341
GB/T 13022
ISO 527
GB/T 1040
ISO 178
GB/T 1041
ASTM D 638




Technical Parameter

Technical Parameter



Deformation Measurement Range
≤900mm
Deformation indication error
1µm或示值的±0.5%以内
Deformation Resolution
0.1µm@≤10mm,0.005mm@>10mm
