Pipe Fittings Valve Pressure Drop Testing Machine
管件阀门压力降试验机

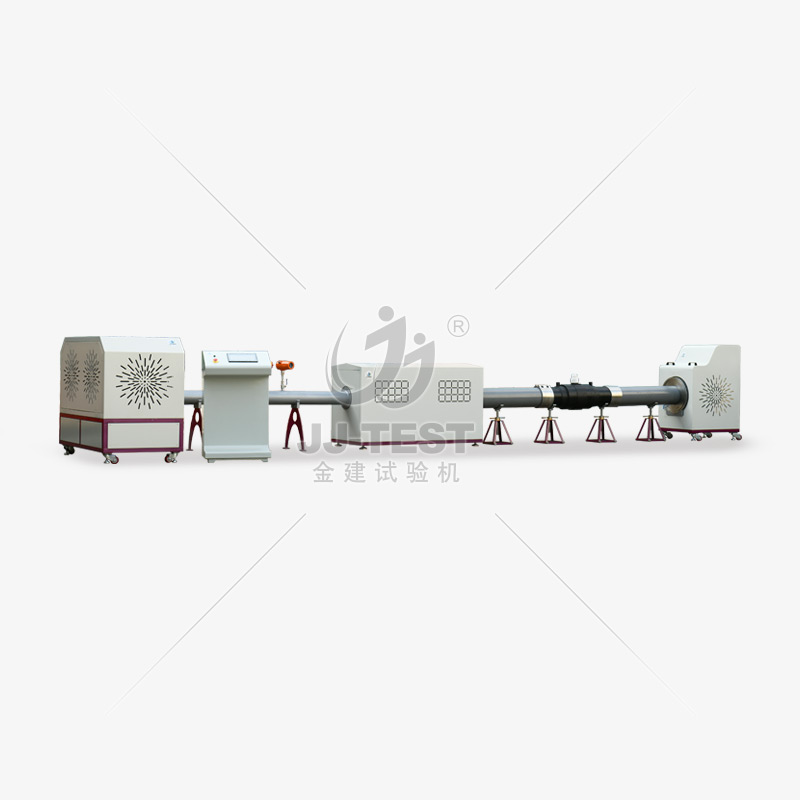

JJPDTM-112 Pipe Fittings Valve Pressure Drop Testing Machine
This instrument is mainly used for polyolefin (including PE, PP, PB, PIB, EPR, EPDM, etc.), polyvinyl chloride (including PVC-U, PVC-C, etc.), polyvinyl fluoride and other plastics The determination of the relationship between gas flow and pressure drop in piping system components such as pipe fittings and valves. This machine has the characteristics of automatic and procedural testing process, simple operation, safe operation and low noise.

Standard

GB/T 15558.3
Description
Features
Standards
Specifications
Accessories

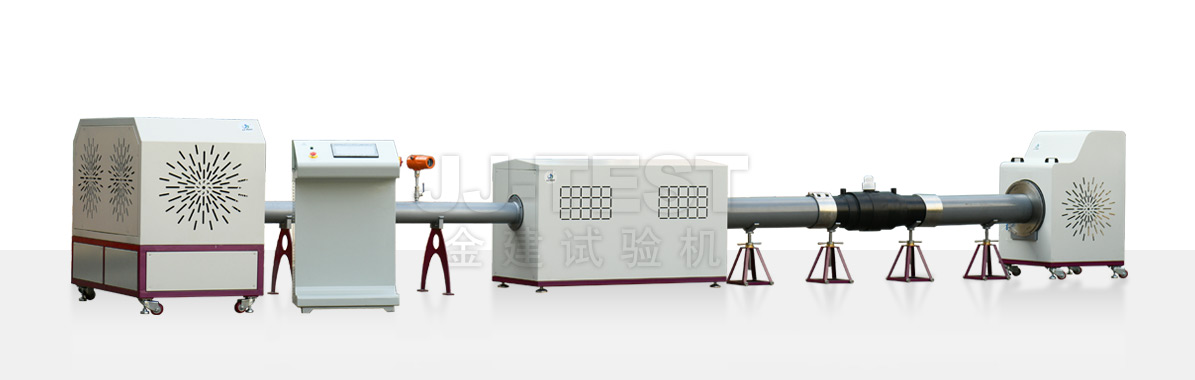

JJPDTM-112 Pipe Fittings Valve Pressure Drop Testing Machine

Mainly used for gas in polyolefin (including PE, PP, PB, PIB, EPR, EPDM, etc.), polyvinyl chloride (including PVC-U, PVC-C, etc.), polyvinyl fluoride and other plastic pipe fittings and valves and other piping system components Determination of the relationship between flow rate and pressure drop. This machine has the characteristics of automatic and procedural testing process, simple operation, safe operation and low noise.



Standard


GB 15558
GB 15558.2
GB 26255


JJPDTM-112 Pipe Fittings Valve Pressure Drop Testing Machine

Technical Parameter

Technical Parameter


Output pressure range:
0 ~ 3kPa(Gauge pressure) adjustable, control accuracy ±0.05kPa
Measurement accuracy:
±1.5%

Measurement accuracy

level:

0.6


Flow rate measurement

range:

1m/s ~ 8m/s


Connecting sample pipe

diameter range:

DN40 ~ DN315，Including 7 specifications such as DN40, DN63, DN90, DN110, DN160, DN250, DN315, etc.


Temperature:
15 ~ 55℃
Humidity:
≤95%
