High Temperature Test Chamber
高温老化试验箱

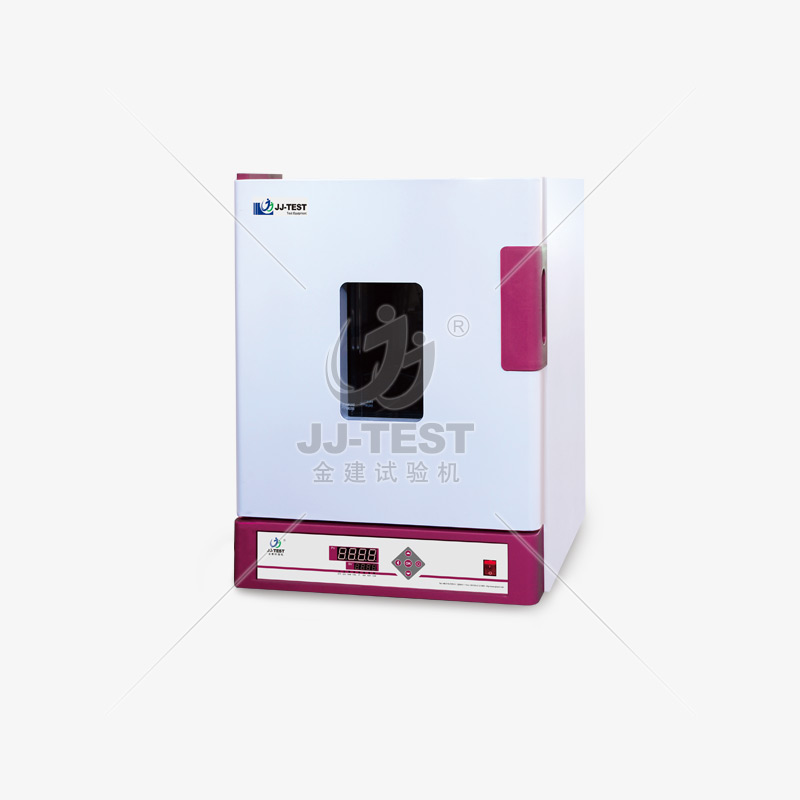

XCB-300 High Temperature Test Chamber
This instrument is used for high temperature aging test or dimensional change rate test of plastic pipes, pipe fittings, sheets and profiles, and can also be used for baking, drying heat treatment and other heating purposes in laboratories or factories; the bypass hot air circulation system is adopted to avoid the direct radiation of the sample by the heat source, and the temperature inside the box is uniform. The temperature control adopts intelligent PID adjustment technology, the temperature is accurate and the operation is simple. Compliant with standards: GB/T6671, GB/T11158, GB/T2423.2, etc.

Standard

GB/T 6671,GB/T 2423.2,GB/T 11158
Description
Features
Standards
Specifications
Accessories

XCB-300 series High Temperature Test Chamber



The instrument is mainly used for high temperature aging test of various plastic pipes, pipe fittings, sheets and profiles, and the inspection of the state after heating and the measurement of dimensional change rate. It is widely used in laboratories or factories for baking, drying heat treatment and other For heating; in order to ensure the uniform temperature in the box during the test, a blower device is installed; LED digital display of the test temperature.

It is a testing instrument with simple structure and convenient operation.


Standard

Standard


GB/T 6671
GB/T 2423.3
GB/T 11158


XCB-300 series High Temperature Test Chamber

Technical Parameter

Technical Parameter



Model
XCB-300/XCB-300I/XCB-300II
Maximum temperature of the studio
300℃
Control range
RT - 300℃
Temperature fluctuation
 		±1℃
Temperature resolution
0.1℃
Length measuring range
0 - 400mm
